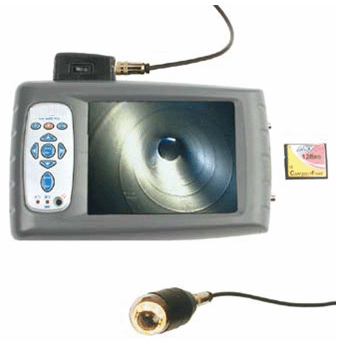

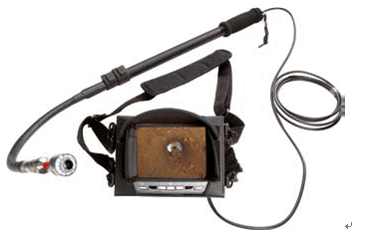

VD2.0 视频生命探测仪

用  途

用于建筑倒塌等灾害现场搜寻人员。通过探测器的视频探头，确定被困人员位置及状态，具有防水性能，可在雨中便用。

简  介

VD2.0 视频生命探测仪前段镜头可做水平：360°旋转，垂直： 180°翻转，图像视角：对角118°，水平97°，垂直74°，达到IP64的防水标准，灵活的视频探测功能，适合多种救援场所。

VD2.0 视频生命探测仪可以将数字图像和录像捕捉到128MB内存卡上，通过随机附带的USB2.0读卡器可以轻松的把存储的图像和录像下载到笔记本电脑或计算机上。

摄像机电缆带有米数标记，检测距离可实时显示在监视器屏幕上，从而简化了检测中的定位问题。

适用领域

消防、地震救援、海事、深井救援、民防系统。

技术指标

显示器

分辨率: 768×512 像素 (PAL)，640×480像素(NTSC)。

尺寸：27×20×6cm

*TFT显示屏尺寸：6.5”（对角线）

*CF存储卡：128MB

*视频输出：FBAS信号

重量：1300g 电池：72V，NIMH

运行时间：2小时　　环境温度：0－40℃

实屏菜单显示：检测距离显示，日期和时间

彩色旋转镜头

镜头直径：51mm 类型：彩色CCD

光敏度：0.4Lux

物镜：f-2.0 mm, F-2.0

*图像视角：对角118°，水平97°，垂直74°

*水平旋转： 360°， 垂直翻转:180°

*防水等级：I64防水标准

*光源：4个散射灯和6个可开关的超亮白色LED灯

尺寸: 51mm×99mm，重量：240g

视频线：

*带米数标记检测线20米，线芯直径7 mm

标准配置

l         彩色显示器（配备可肩背皮革保护包）

l         128 MB CF存储卡和USB读卡器

l         水平可旋转、垂直可翻转彩色摄像头

l         广角直视26mm彩色镜头

l         带米数标记视频线20米，线芯直径7 mm

l         带保护套的滚轮导向器

l         带定心星固定器的固定套

l         电源

l         手提仪器箱XXL

*为唯一性性技术指标

可水平360°旋转，垂直180°翻转的彩色防水镜头

【Details: 】

VD2.0 video life detector

Manufacturer: Beijing TopSky Automation Technology Co., Ltd

Uses： For building collapse and other disasters, the rescue personnel. Video probe through the probe to determine the location and status of people trapped, with waterproof properties, can be used in the rain. Introduction：

VD2.0 life detector front-end video camera to do the level of: 360 ° rotation, vertical: 180 ° flip, image angle: The angle 118 °, the level of 97 °, vertical 74 °, to achieve IP64 waterproof standard, flexible video probe features, suitable for a variety of rescue sites.

VD2.0 video life detector can be digital images and video capture 128MB memory card, through random USB2.0 card reader can be easily attached to the stored images and video downloaded to a laptop or computer.

Camera cable with m the number of markers to detect from the real-time display on the monitor screen, thereby simplifying the detection of the positioning.

Applications ：

Fire, earthquake rescue, marine, deep relief, civil defense system。

Specifications：

Monitors

 Resolution: 768 × 512 pixels (PAL), 640 × 480 pixels (NTSC).

 Dimensions: 27 × 20 × 6cm

 * TFT screen size: 6.5 "(diagonal)

 * CF card: 128MB

 * Video Output: FBAS signal

  Weight: 1300g Battery: 72V, NIMH

  Running time: 2 hours and ambient temperature :0-40 ℃

  Real-screen menu displays: detection distance display, date and time, 10-bit characters in the title input and Waller is compatible with all cameras

Color Rotating Lens

Lens Diameter: 51mm Type: Color CCD

Light sensitivity: 0.4Lux

Objectives: f-2.0 mm, F-2.0

* Image Perspective: right angle 118 °, the level of 97 °, vertical 74 °

* The level of rotation: 360 °, Vertical flip: 180 °

* Waterproof rating: I64 Waterproof Standard

* Light Source: 4 San spotlights and 6 switchable super-bright white LED lights

 Size: 51mm × 99mm, Weight: 240g

Video Cable:

* The number of marked test line with a meter to 20 meters, wire core diameter 7 mm Standard configuration

color display (equipped with leather shoulder protection package)

 128 MB CF memory card and USB card reader

 levels can rotate, flip vertical color camera can be

 look directly at 26mm wide-angle lens color

 with m the number of marked video cable 20 meters, the line core diameter 7 mm

 sets of rollers with protection director

  with a centering device

Power Supply

  portable device box XXL

* As the only sexual Specifications

 May be the level of 360 ° rotation, vertical 180 ° flip of the color waterproof camera
